On&On Adventure is made for the long way round. Extensive mounts take bags and bottles, there is clearance for tyres up to 45c, and the handling stays steady and sure when the day stretches out.
Who it's for: Bikepackers, all-day gravel riders and explorers.
Where it goes: Loaded weekends, rough backroads and routes that keep going long after the tarmac ends.
Built around your fit: Every Pearson is built to order, so on every build we set the bar width, stem length, stack height and crank length to suit you. Your bike arrives set up to your own measurements and ready to ride, the same fit thinking that shapes our geometry applied to the contact points that make it feel like yours.
GeometrySizes 1 to 5
Fit
Where your hands and hips sit.
Handling
How it steers and settles.
| Measurement | |||||
|---|---|---|---|---|---|
| Rider heightcm | 158 to 171 | 167 to 178 | 175 to 183 | 180 to 190 | 188 and up |
| Fit | |||||
| 365 | 373 | 381 | 390 | 399 | |
| 542 | 558 | 579 | 598 | 617 | |
| 521 | 539 | 553 | 568 | 583 | |
| 470 | 495 | 520 | 545 | 570 | |
| 110 | 125 | 145 | 165 | 185 | |
| 74.0 | 73.5 | 73.5 | 73.5 | 73.5 | |
| Handling | |||||
| 70.5 | 71.0 | 71.5 | 71.5 | 71.5 | |
| 69 | 69 | 66 | 66 | 66 | |
| 50 | 50 | 50 | 50 | 50 | |
| 1011 | 1020 | 1030 | 1046 | 1061 | |
| 435 | 435 | 435 | 435 | 435 | |
| 78.0 | 78.0 | 78.0 | 78.0 | 78.0 | |
Full Specification
Frameset
Frame
On&On Adventure, carbon high-strength T700

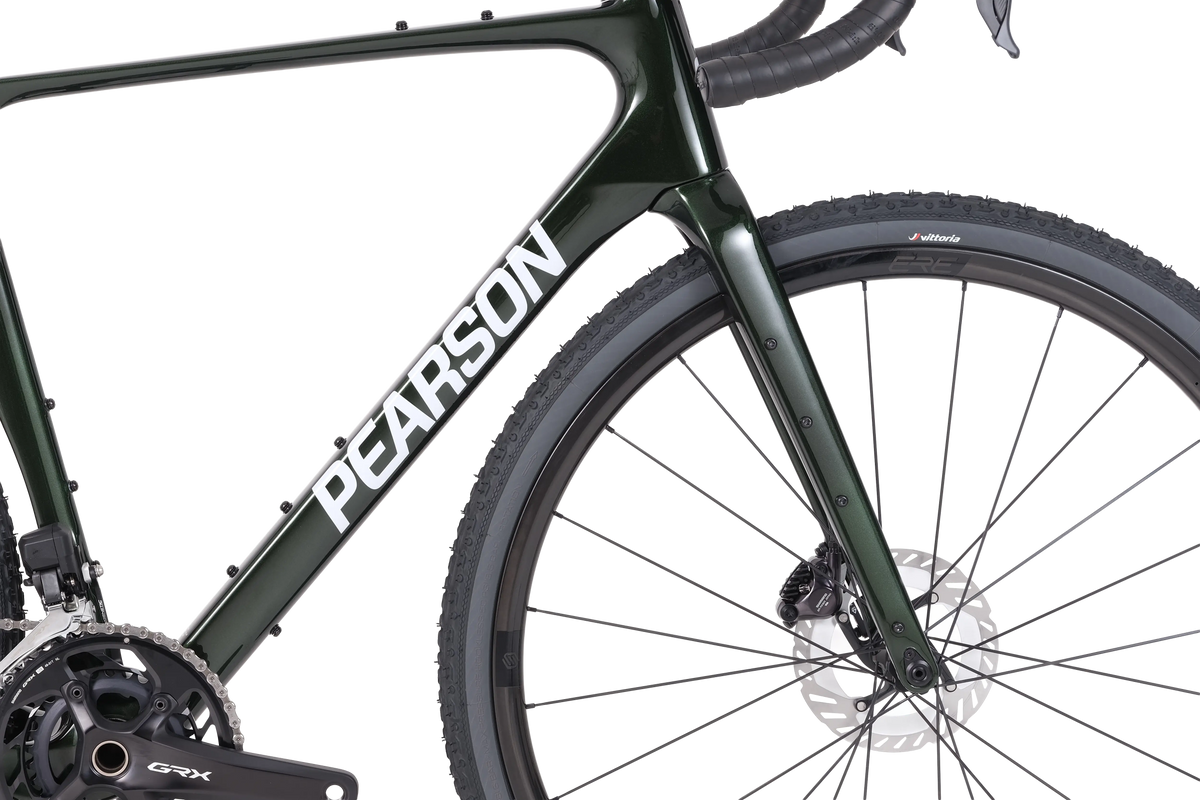

Fork
On&On, carbon
Seatpost Offset
Size 1-2: 0mm, Size 3-5: 12mm
Bottom Bracket
CeramicSpeed T47e
CeramicSpeed T47e
- Weight
- 114 g (SRAM DUB), 118 g (Shimano 24 mm)
- Spindle
- SRAM DUB or Shimano 24 mm, to match the crankset
- Bearings
- CeramicSpeed balls on hardened-steel races (Standard, uncoated)
- Cups
- 2 threaded cups, bearings pressed in
Headset
Pearson with CeramicSpeed SLT bearings
Pearson with CeramicSpeed SLT bearings
- Bearings
- CeramicSpeed SLT, 31 g each
- Size
- 1-1/2 in
- Dimensions
- 40 x 52 x 7 mm (ID x OD x width)
Drivetrain
Crankset
Shimano GRX FC-RX820-2, 48/31 tooth
- Size 1: 160mm, Size 2 & 3: 165mm, Size 4 & 5: 170mm
Shimano GRX FC-RX820-2, 48/31 tooth
- Weight
- 710 g (without bottom bracket)
- Chainrings
- 48-31T, 110/80 BCD 4-arm
- Spindle
- Hollowtech II (24 mm)
- Chainline
- 47 mm
Cassette
Shimano CS-HG710 12-speed, 11-36T
Shimano CS-HG710 12-speed, 11-36T
- Weight
- 391 g
- Speeds
- 12
- Range
- 11-36T
- Freehub
- Shimano HG L2 spline (road 12-speed)
Front Derailleur
Shimano FD-RX825 Di2
Shimano FD-RX825 Di2
- Weight
- 142 g
- Mount
- Braze-on
- Max chainring
- 48T
- Capacity
- 17T
- Chainline
- 47 mm
Rear Derailleur
Shimano RD-RX825 Di2
Shimano RD-RX825 Di2
- Weight
- 310 g (without battery)
- Speeds
- 12
- Max cog
- 36T (min. 34T)
- Capacity
- 40T
Chain
Shimano CN-M8100
Shimano CN-M8100
- Weight
- 252 g (114 links)
- Speeds
- 12 (HG 12-speed)
- Connector
- QUICK-LINK
Wheels and tyres
Wheels
ERE Explorator CCR45
- 45mm carbon rim
ERE Explorator CCR45
- Weight
- 1,575 g a pair
- Rim height
- 45 mm
- Inner width
- 25 mm
- Outer width
- 32 mm
- Rim
- Carbon, hooked, tubeless ready
- Spokes
- Alpina Extralite straight-pull, 20 front / 24 rear
- Nipples
- Alpina brass
- Hubs
- ERE IONA II, 3-pawl
- Axles
- 12x100 mm front / 12x142 mm rear thru-axle
- Rotor mount
- Center Lock
- Tyre width
- 32 to 55 mm recommended
- Rider weight limit
- 130 kg
Tyres
Vittoria Terreno T80 45c Gravel Endurance Black
Vittoria Terreno T80 45c Gravel Endurance Black
- Weight
- 540 g each
- Size
- 700x45c (ETRTO 45-622)
- Casing
- Endurance, nylon 100 TPI
- Compound
- Endurance Formulation, Graphene
- Tread
- Coarse loose gravel (T-score 80), aggressive shoulder knobs
- Colour
- Black
Brakes
Brakes
Shimano GRX BR-RX820
Shimano GRX BR-RX820
- Weight
- 282 g (pair of callipers)
- Brake
- Hydraulic disc
- Mount
- Flat mount
- Pistons
- 2
Rotors
Shimano RT-CL800 160mm
Shimano RT-CL800 160mm
- Weight
- 114 g each
- Mount
- Center Lock
- Diameter
- 160 mm
- Thickness
- 1.75 mm
- Cooling
- ICE TECHNOLOGIES FREEZA fins

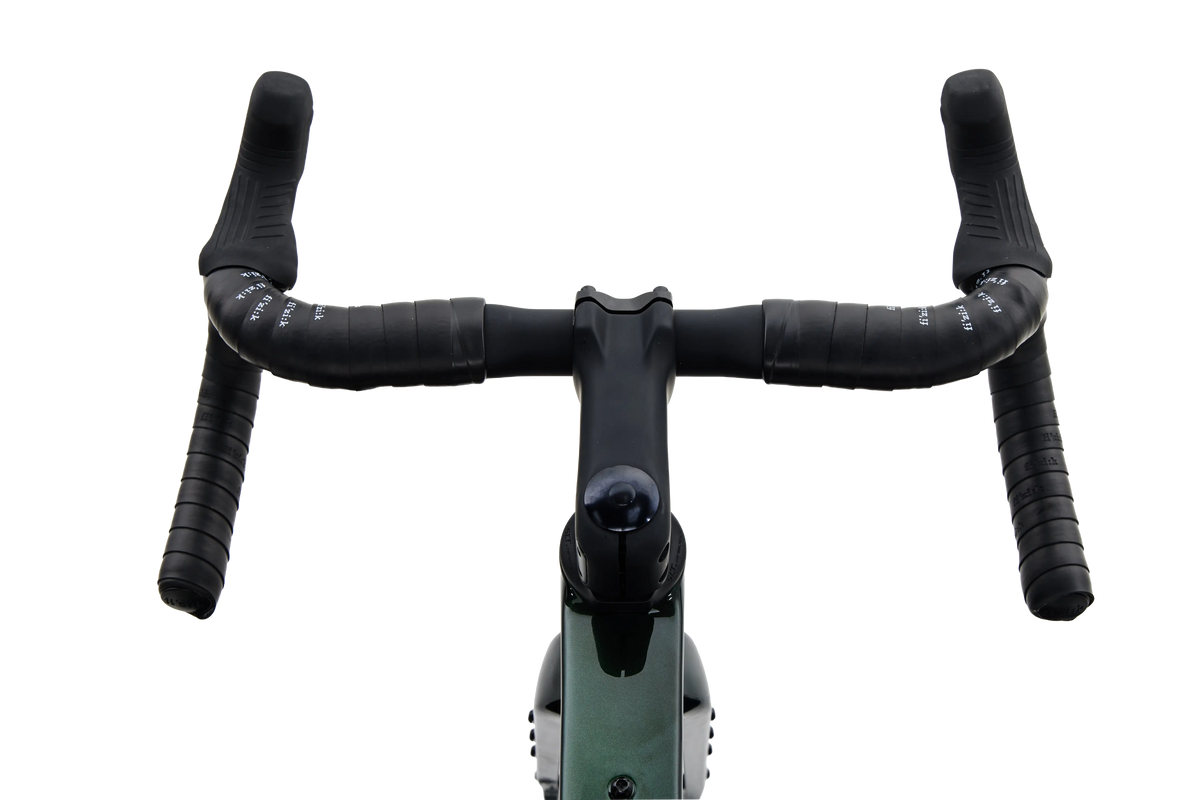

Cockpit and contact points
Handlebar
Pearson Flared Carbon 2 piece
- Size 1: 38cm, Size 2-4: 40cm, Size 5: 42cm
Stem
Pearson Road Carbon Stem
- Size 1: 90mm, Size 2-4: 100mm, Size 5: 110mm
Bar Tape
Fizik Terra Bondcush Tacky
- 3mm
Fizik Terra Bondcush Tacky
- Weight
- 69 g
- Thickness
- 3 mm
Saddle
Fizik Terra Argo X1 150mm
Fizik Terra Argo X1 150mm
- Weight
- 215 g
- Width
- 150 mm
- Rails
- Carbon, 7 x 9 mm, closed-loop Mobius rail
