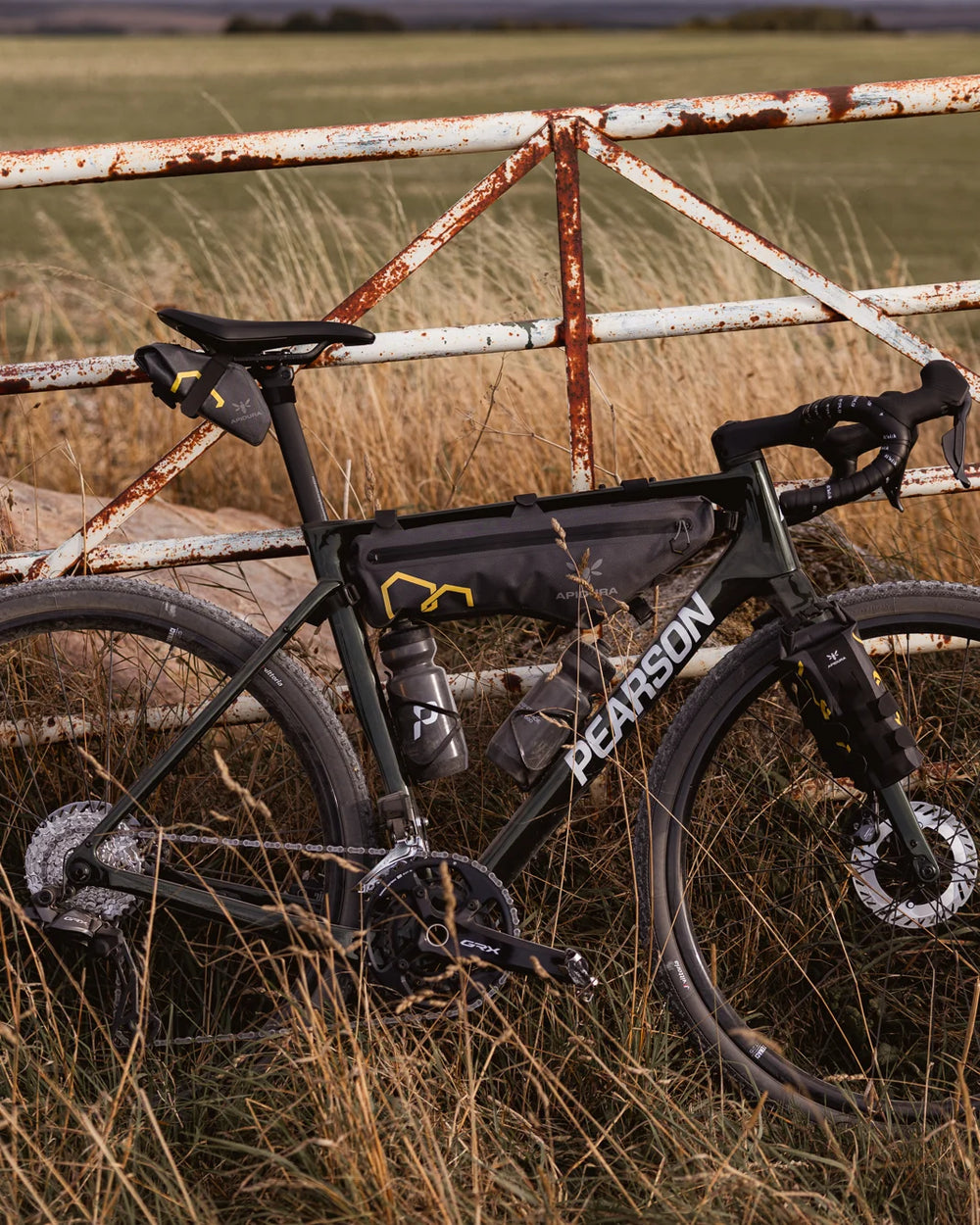

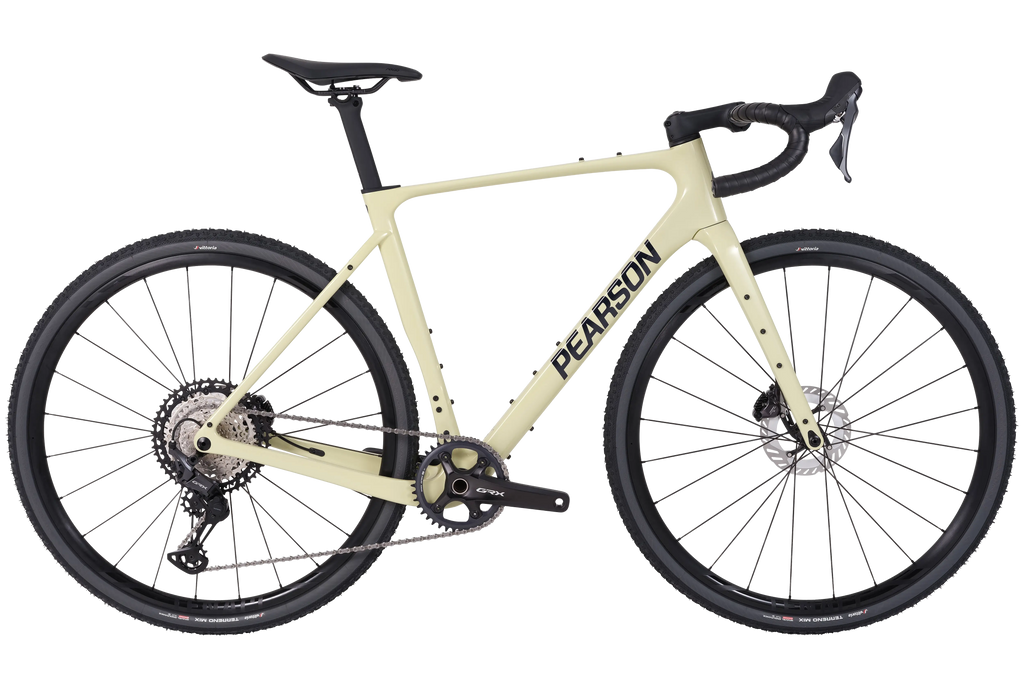

On&On Adventure is made for the long way round. Extensive mounts take bags and bottles, there is clearance for tyres up to 45c, and the handling stays steady and sure when the day stretches out.
Who it's for: Bikepackers, all-day gravel riders and explorers.
Where it goes: Loaded weekends, rough backroads and routes that keep going long after the tarmac ends.
Built around your fit: Every Pearson is built to order, so on every build we set the bar width, stem length, stack height and crank length to suit you. Your bike arrives set up to your own measurements and ready to ride, the same fit thinking that shapes our geometry applied to the contact points that make it feel like yours.
GeometrySizes 1 to 5
Fit
Where your hands and hips sit.
Handling
How it steers and settles.
| Measurement | |||||
|---|---|---|---|---|---|
| Rider heightcm | 158 to 171 | 167 to 178 | 175 to 183 | 180 to 190 | 188 and up |
| Fit | |||||
| 365 | 373 | 381 | 390 | 399 | |
| 542 | 558 | 579 | 598 | 617 | |
| 521 | 539 | 553 | 568 | 583 | |
| 470 | 495 | 520 | 545 | 570 | |
| 110 | 125 | 145 | 165 | 185 | |
| 74.0 | 73.5 | 73.5 | 73.5 | 73.5 | |
| Handling | |||||
| 70.5 | 71.0 | 71.5 | 71.5 | 71.5 | |
| 69 | 69 | 66 | 66 | 66 | |
| 50 | 50 | 50 | 50 | 50 | |
| 1011 | 1020 | 1030 | 1046 | 1061 | |
| 435 | 435 | 435 | 435 | 435 | |
| 78.0 | 78.0 | 78.0 | 78.0 | 78.0 | |
Full Specification
Frameset
Frame
On&On Adventure, carbon high-strength T700

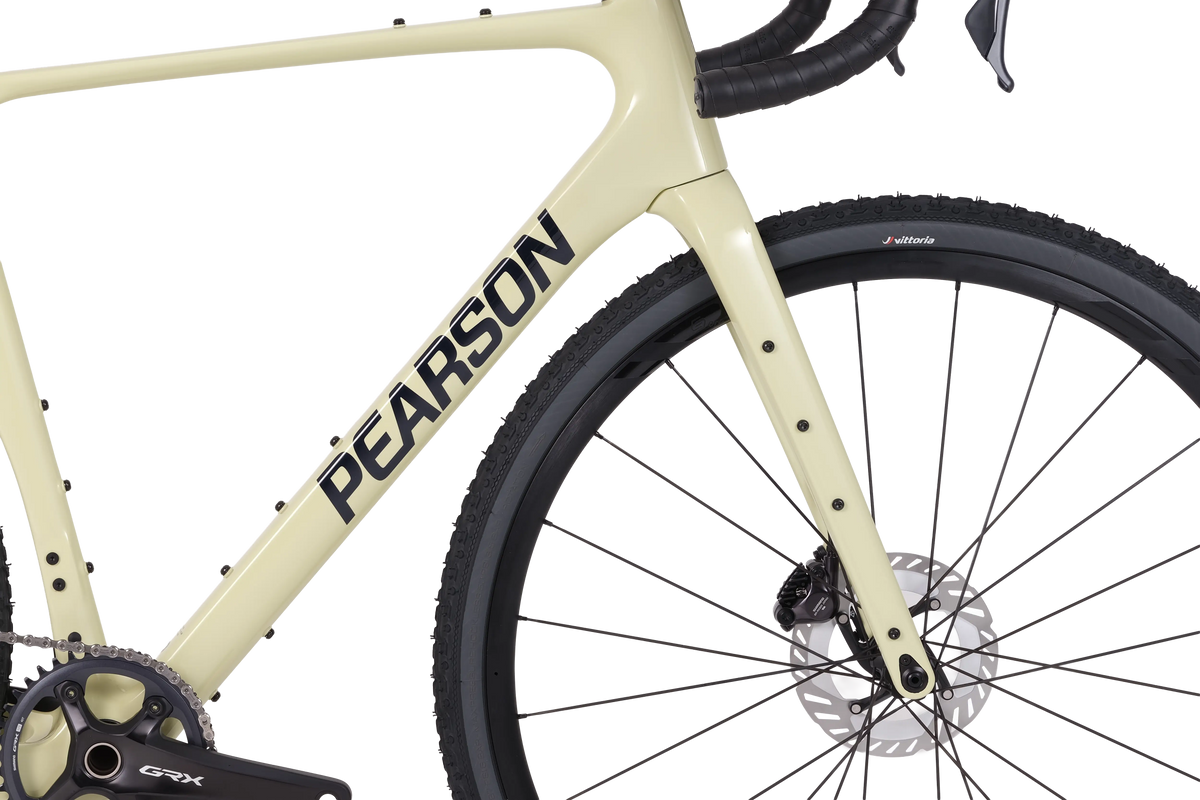

Fork
On&On, carbon

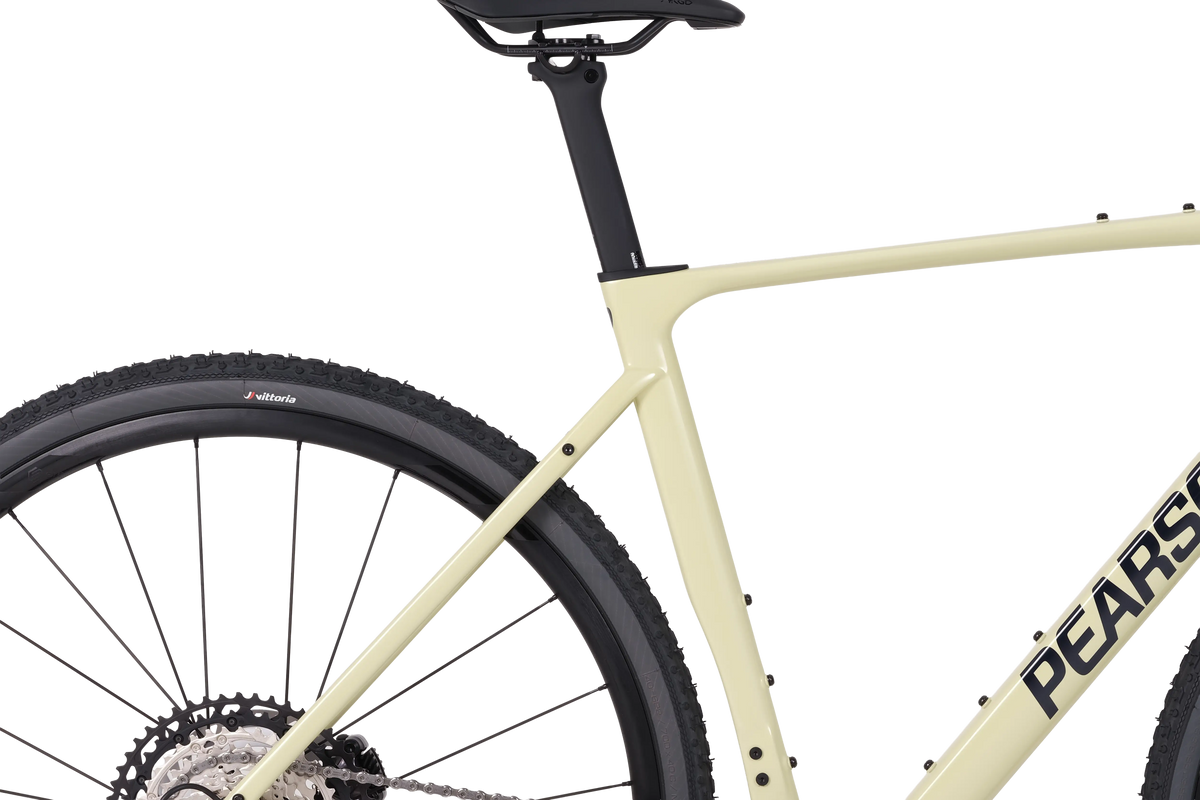

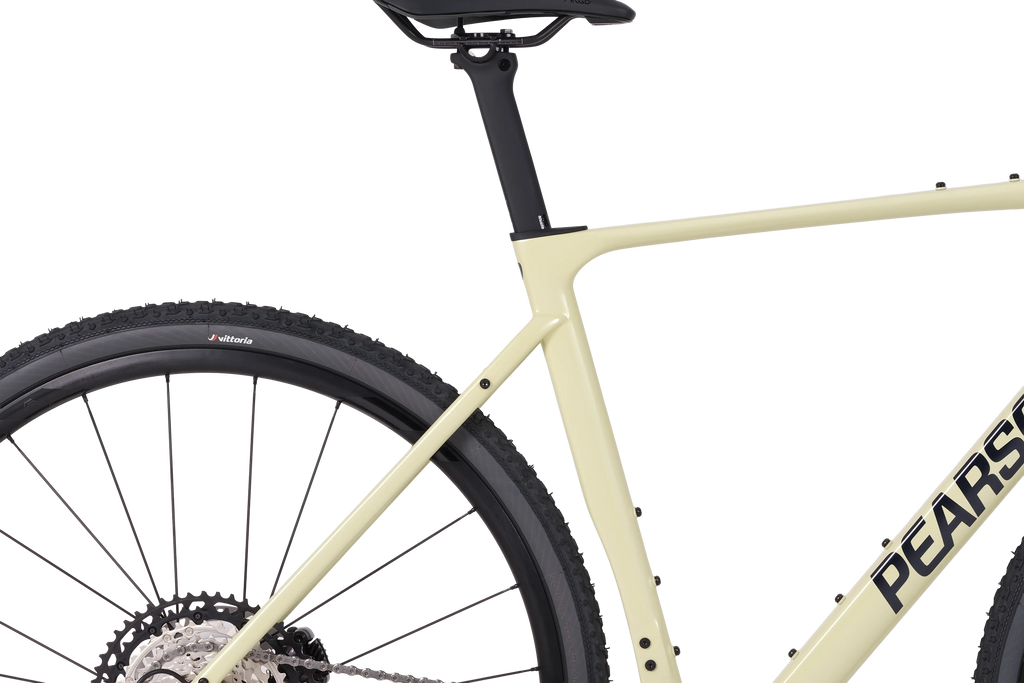

Seatpost Offset
Size 1-2: 0mm, Size 3-5: 12mm
Bottom Bracket
Hope T47e
Hope T47e
- Spindle
- 24 mm
- Bearings
- Stainless steel, replaceable
- Cups
- CNC-machined aluminium
Headset
Pearson with CeramicSpeed SLT bearings
Pearson with CeramicSpeed SLT bearings
- Bearings
- CeramicSpeed SLT, 31 g each
- Size
- 1-1/2 in
- Dimensions
- 40 x 52 x 7 mm (ID x OD x width)
Drivetrain
Crankset
Shimano GRX FC-RX820-1, 40 tooth
- Size 1: 160mm, Size 2 & 3: 165mm, Size 4 & 5: 170mm
Shimano GRX FC-RX820-1, 40 tooth
- Weight
- 644 g (without bottom bracket)
- Chainring
- 40T, 110 BCD 4-arm
- Spindle
- Hollowtech II (24 mm)
- Chainline
- 49.7 mm
Cassette
Shimano XT CS-M8200 12-speed, 10-51T
Shimano XT CS-M8200 12-speed, 10-51T
- Weight
- 463 g
- Speeds
- 12
- Range
- 10-51T
- Freehub
- Shimano Micro Spline
Rear Derailleur
Shimano GRX RD-RX822 SGS, 12-speed
Shimano GRX RD-RX822 SGS, 12-speed
- Weight
- 288 g
- Speeds
- 12
- Max cog
- 51T
- Capacity
- 41T
Chain
Shimano CN-M7100
Shimano CN-M7100
- Weight
- 252 g (114 links)
- Speeds
- 12 (HG 12-speed)
- Connector
- QUICK-LINK
Wheels and tyres
Wheels
ERE Tenaci GX23
- Alloy
ERE Tenaci GX23
- Weight
- 1,640 g a pair
- Front wheel
- 770 g
- Rear wheel
- 870 g
- Rim height
- 23 mm
- Inner width
- 25 mm
- Outer width
- 33 mm
- Rim
- 6069 alloy (welded), hooked, tubeless ready (tape fitted)
- Spokes
- Sapim CX-Leader steel straight-pull aero, 24 front / 24 rear
- Hubs
- ERE Iona, 4-pawl
- Axles
- 12x100 mm front / 12x142 mm rear thru-axle
- Rotor mount
- Center Lock
Tyres
Vittoria Terreno T80 45c Gravel Endurance Black
Vittoria Terreno T80 45c Gravel Endurance Black
- Weight
- 540 g each
- Size
- 700x45c (ETRTO 45-622)
- Casing
- Endurance, nylon 100 TPI
- Compound
- Endurance Formulation, Graphene
- Tread
- Coarse loose gravel (T-score 80), aggressive shoulder knobs
- Colour
- Black
Brakes
Brakes
Shimano GRX BR-RX820
Shimano GRX BR-RX820
- Weight
- 282 g (pair of callipers)
- Brake
- Hydraulic disc
- Mount
- Flat mount
- Pistons
- 2
Rotors
Shimano RT-CL800 160mm
Shimano RT-CL800 160mm
- Weight
- 114 g each
- Mount
- Center Lock
- Diameter
- 160 mm
- Thickness
- 1.75 mm
- Cooling
- ICE TECHNOLOGIES FREEZA fins

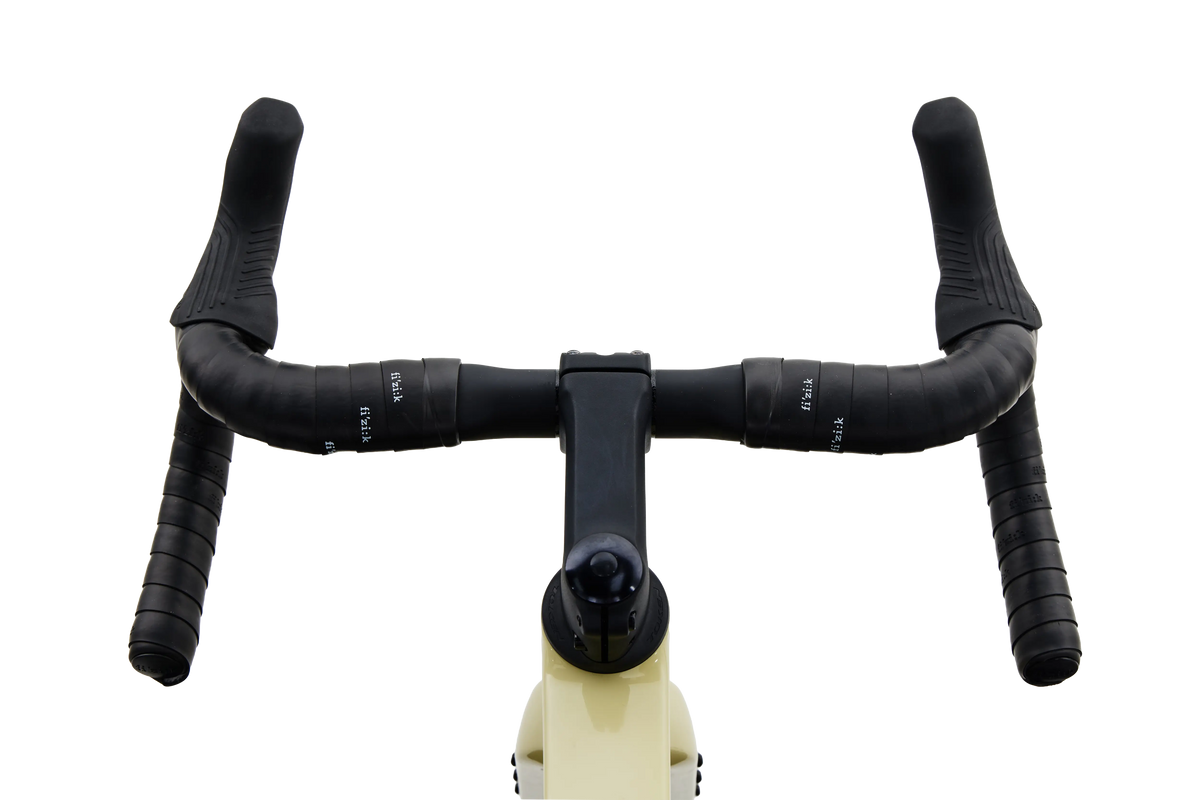

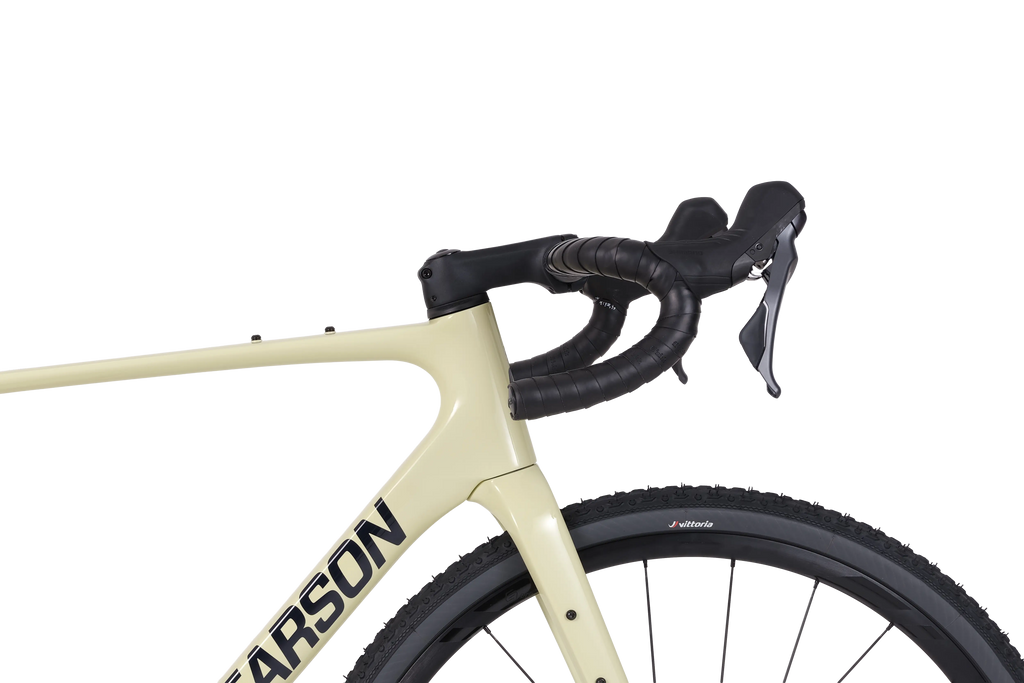

Cockpit and contact points
Handlebar
Pearson Flared Carbon 2 piece
- Size 1: 38cm, Size 2-4: 40cm, Size 5: 42cm
Stem
Pearson Road Carbon Stem
- Size 1: 90mm, Size 2-4: 100mm, Size 5: 110mm
Bar Tape
Fizik Terra Bondcush Tacky
- 3mm
Fizik Terra Bondcush Tacky
- Weight
- 69 g
- Thickness
- 3 mm
Saddle
Fizik Terra Argo X5 150mm
Fizik Terra Argo X5 150mm
- Weight
- 271 g
- Width
- 150 mm
- Rails
- S-Alloy, 7 x 7 mm, closed-loop Mobius rail
