Forge
105

Product Code: 5061029572164
Rider led design with uncompromising performance
Lightweight
Aerodynamic
Comfort
Versatility
Your Size: 1
Your Color: Hammer Black
£4,750
  • 5 Year Transferable Warranty
  • Premium UK Delivery
  • Exceptional Customer Service
  • Built in London

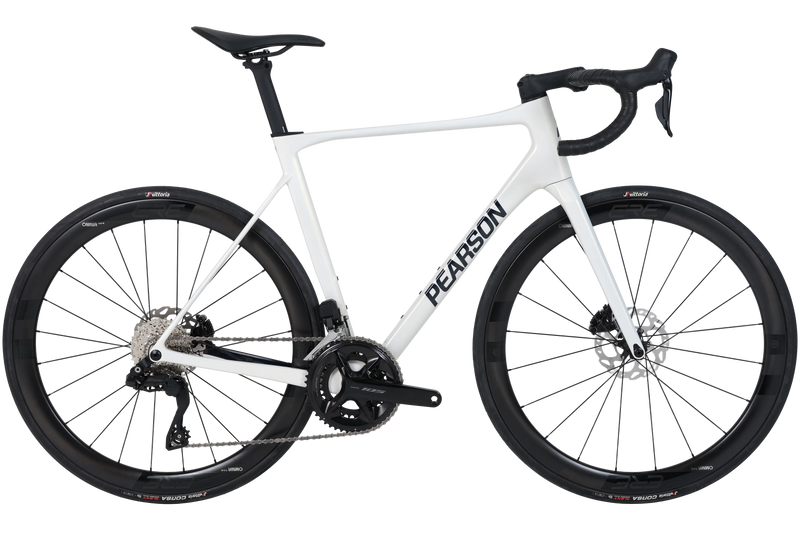

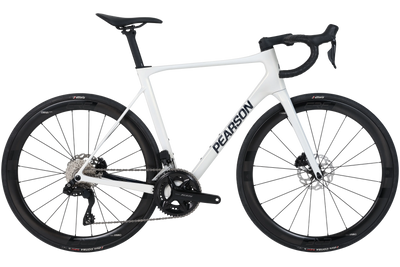

Forge: Where race-inspired elegance meets unparalleled ride quality and comfort, Pearson's definitive answer to the modern road cyclist's quest for Performance Endurance.
System Weight 8.01kg
Frame material Carbon
Forge
105
-
+

FURTHER. FASTER.

Introducing the Forge, Pearson's masterpiece of cycling innovation, where precision and fit meets elegance in every line. This bike is a testament to our relentless pursuit of perfection, offering an unrivalled blend of race-inspired aesthetics and incredible ride quality for the discerning cyclist.

At the heart of the Forge lies our commitment to precision-engineered fit. Developed through extensive data analysis, the Forge boasts a geometry that is both intuitive and inclusive, ensuring a perfect match for a wide range of riders. The result is a bike that feels tailor-made, offering a shorter reach and a taller front end for an ideal balance of comfort and responsiveness.

Elegance is not just an attribute but the core of the Forge's design ethos. Its sleek lines and proportional frame design exude a racing aesthetic that commands attention. The extended fork and subtly ramped top tube not only enhance the bike's visual appeal but also contribute to its aerodynamic efficiency, making every ride both a visual and performance delight. With a T47 BB and a Ceramic Speed headset we ensure that the components and serviceability match the beautiful lines.

The choice of carbon in the Forge is deliberate. We've selected premium lightweight Toray carbon, renowned for its strength and flexibility, to craft a frame that's not just light but also robust enough to withstand the rigours of the road. This high-quality carbon ensures that the Forge maintains an optimal balance between stiffness and comfort, translating into a ride that's smooth yet lively, capable yet graceful.


Frame
Forge, Carbon Toray

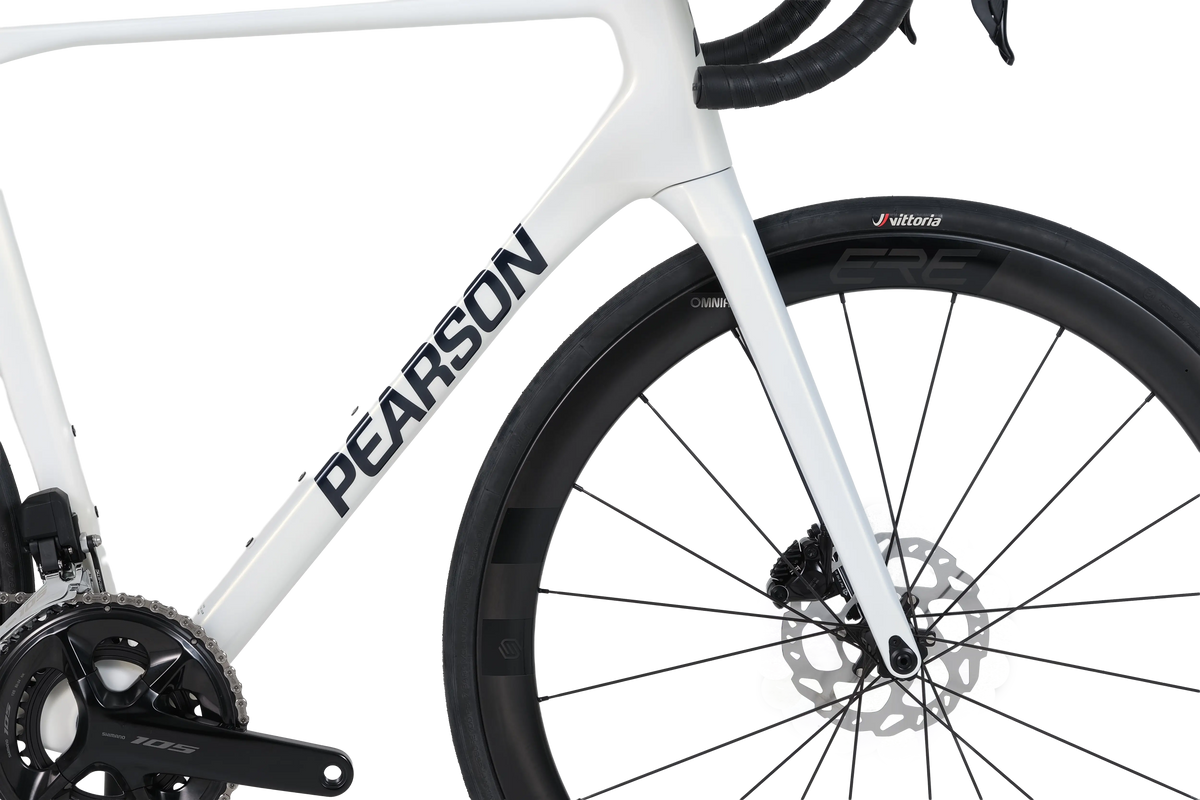

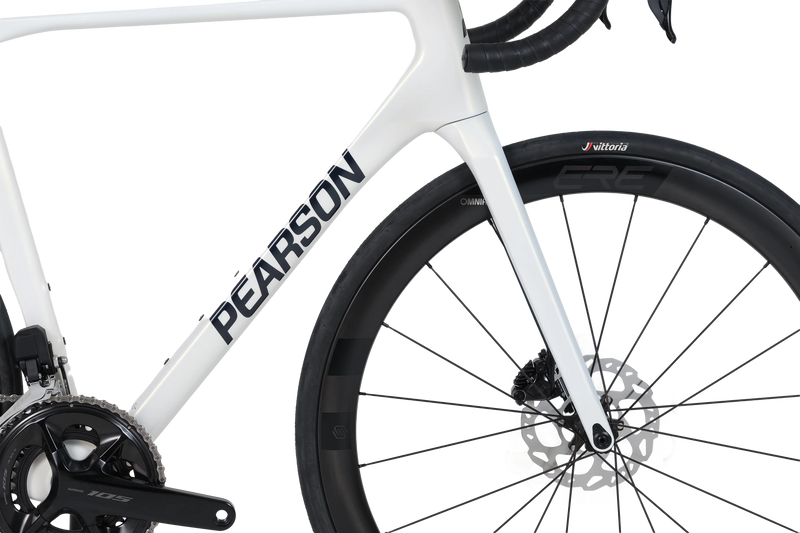

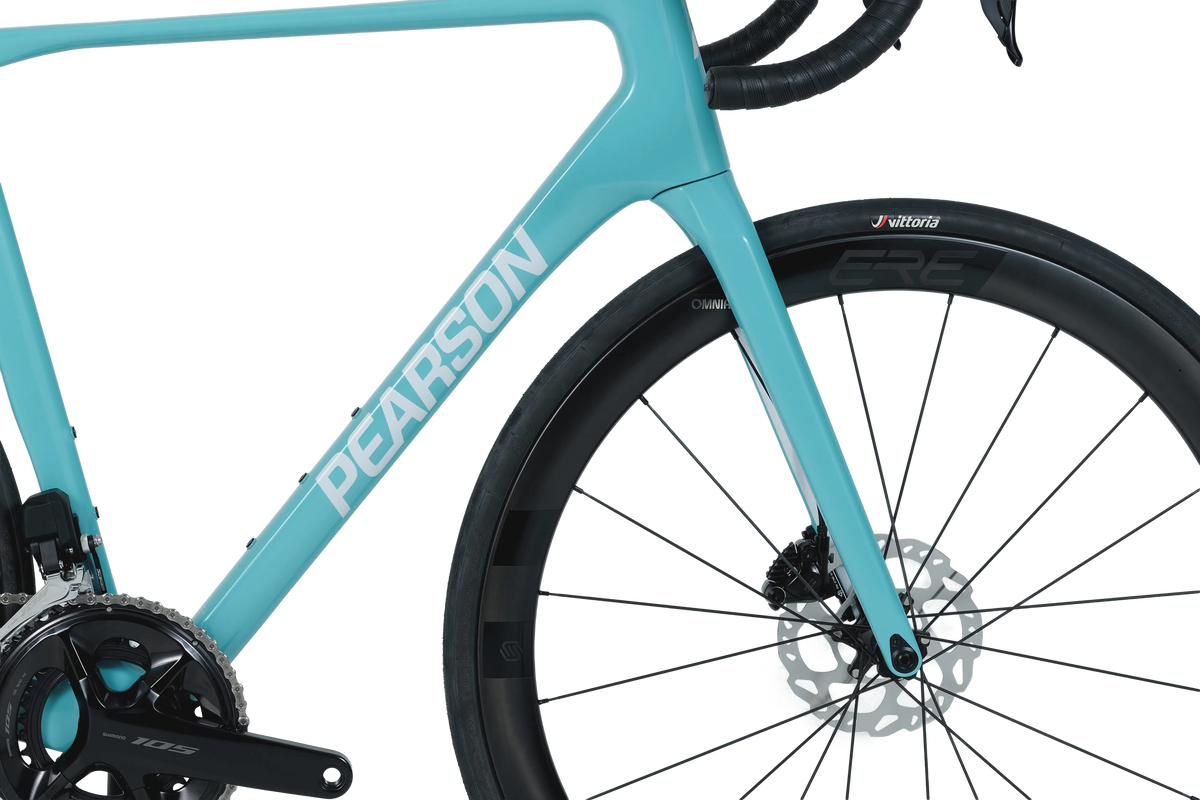

Fork
Forge, Carbon Toray

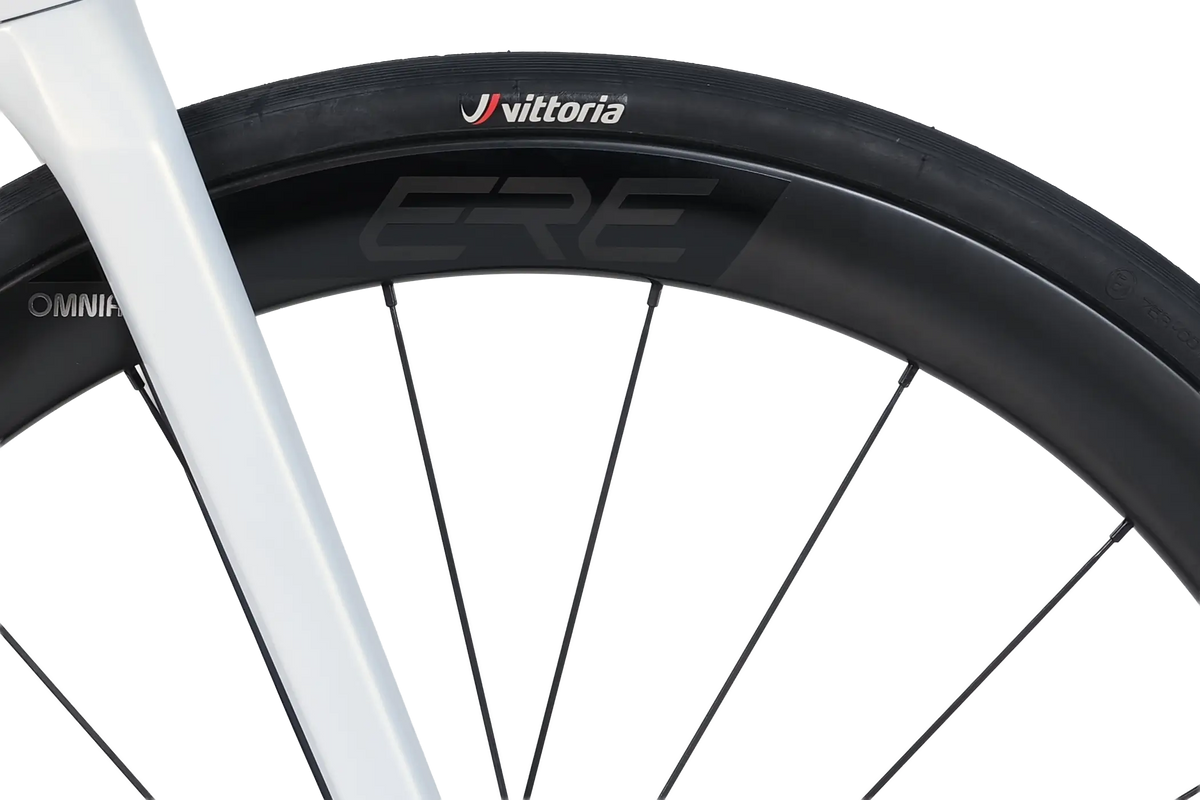

Wheels
ERE Omnia CLR45 45mm Carbon rim
Tyres
Vittoria N.EXT 30c Blackwall

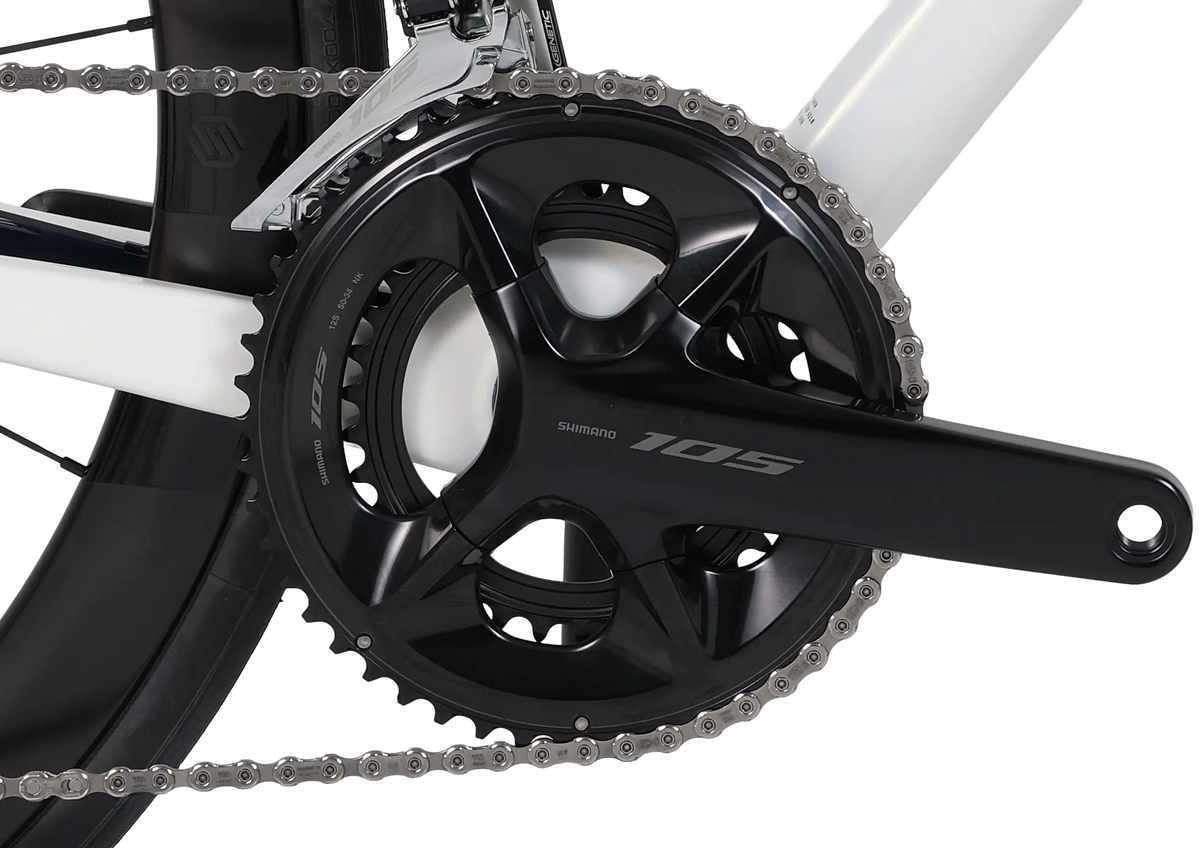

Crankset
Shimano 105 FC-R7100, 50/34 tooth Size 1: 165mm, Size 2-4: 170mm, Size 5: 172.5mm
Cassette
Shimano 105 CS-R7100 12-speed 11-34 tooth
Front Derailleur
Shimano 105 FD-R7150
Rear Derailleur
Shimano 105 RD-R7150
Chain
Shimano CN-M7100
Brakes
Shimano 105 BR-7170
Rotors
Shimano SM-RT70 160mm

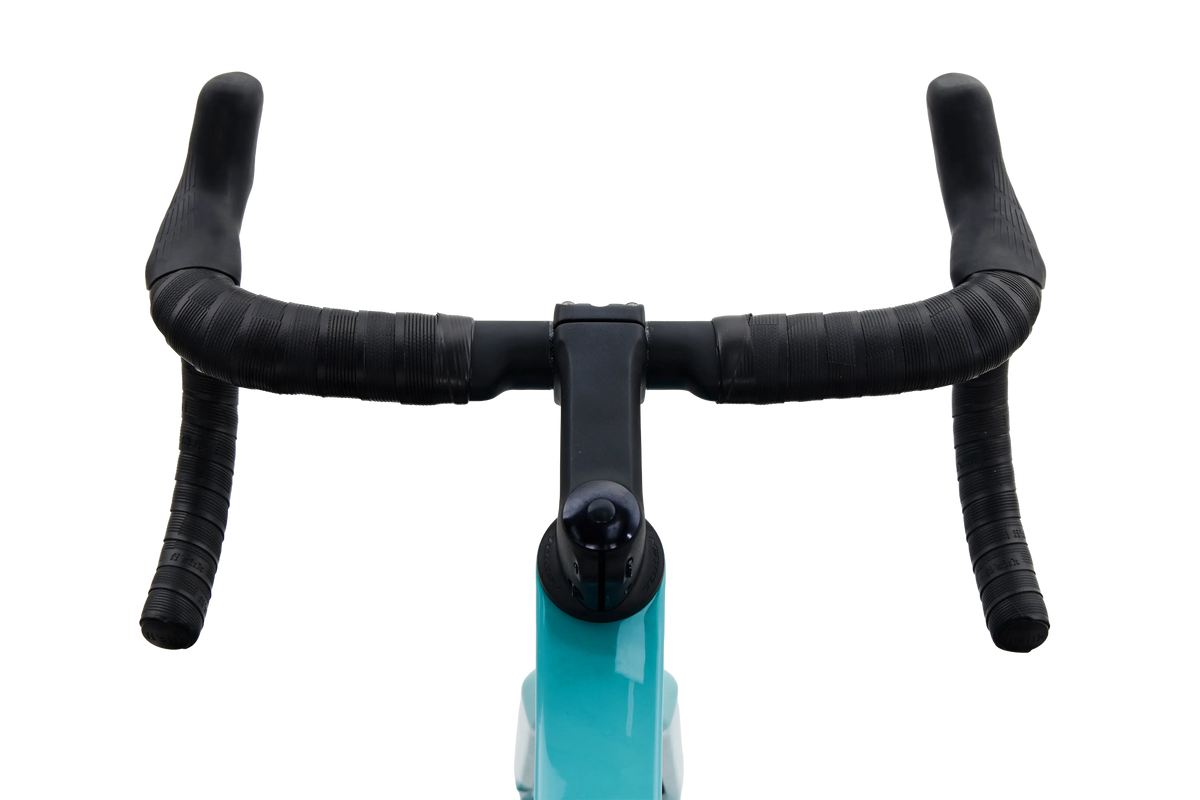

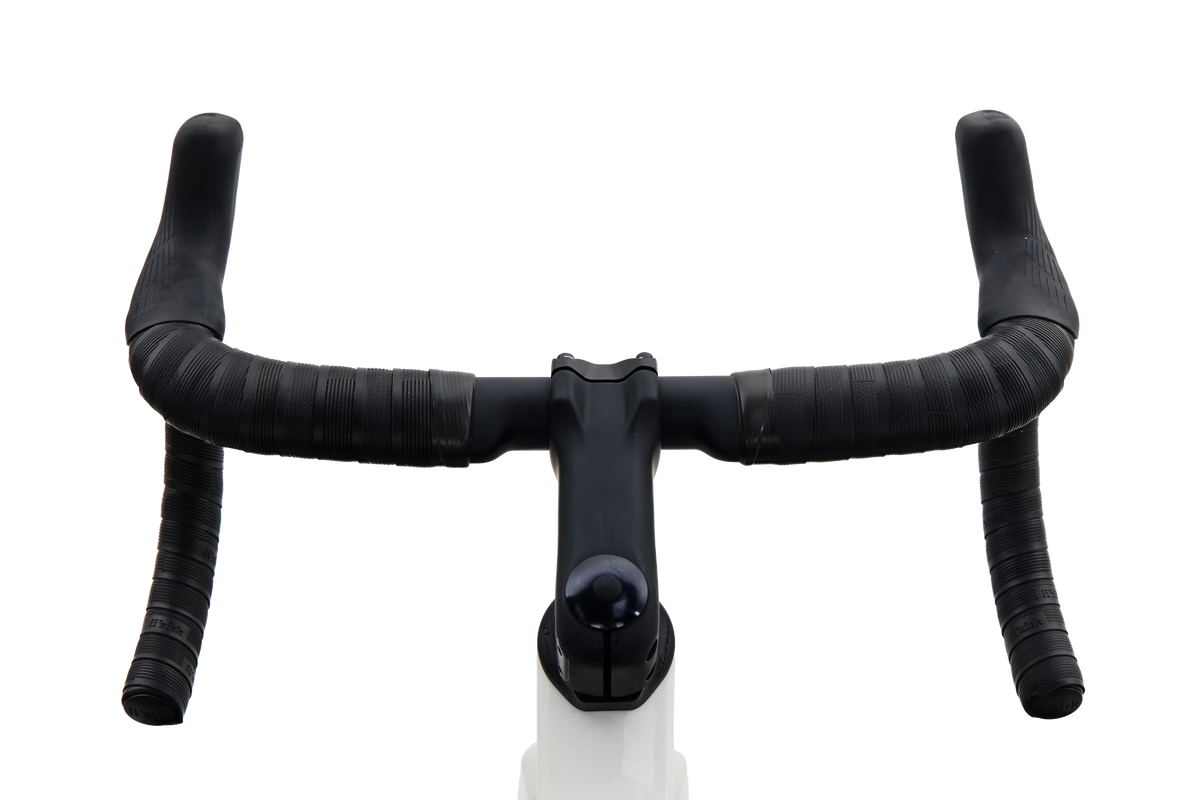

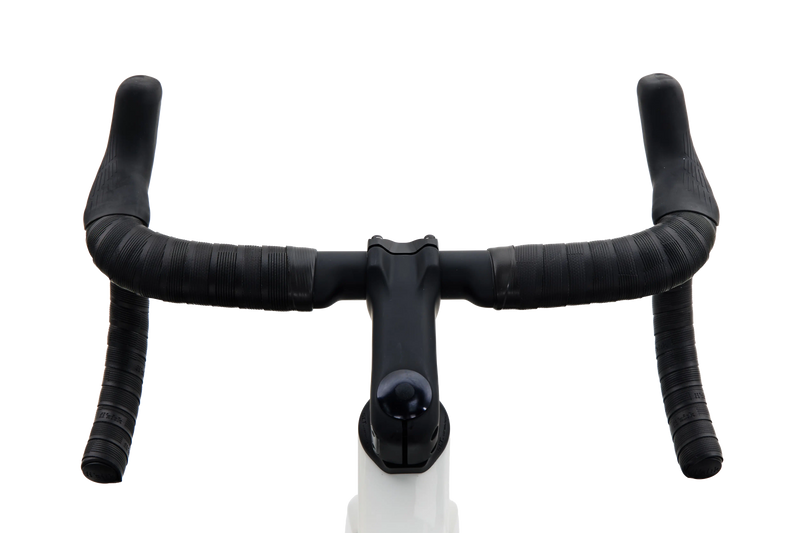

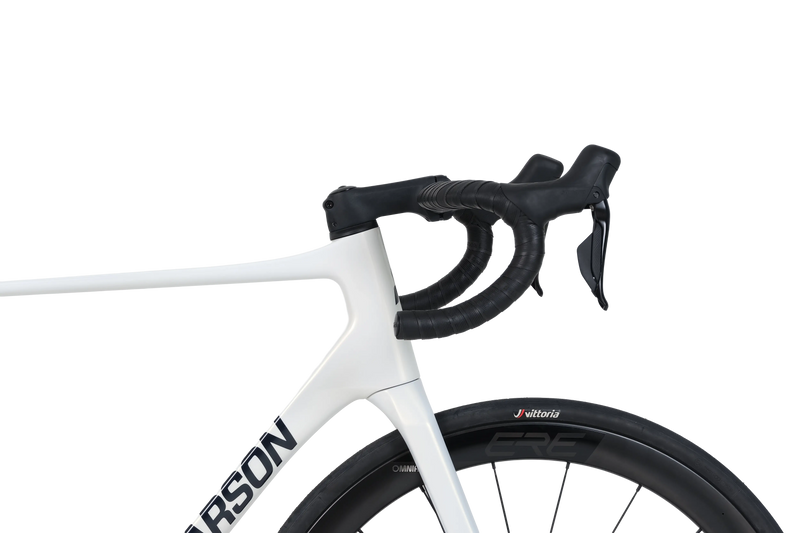

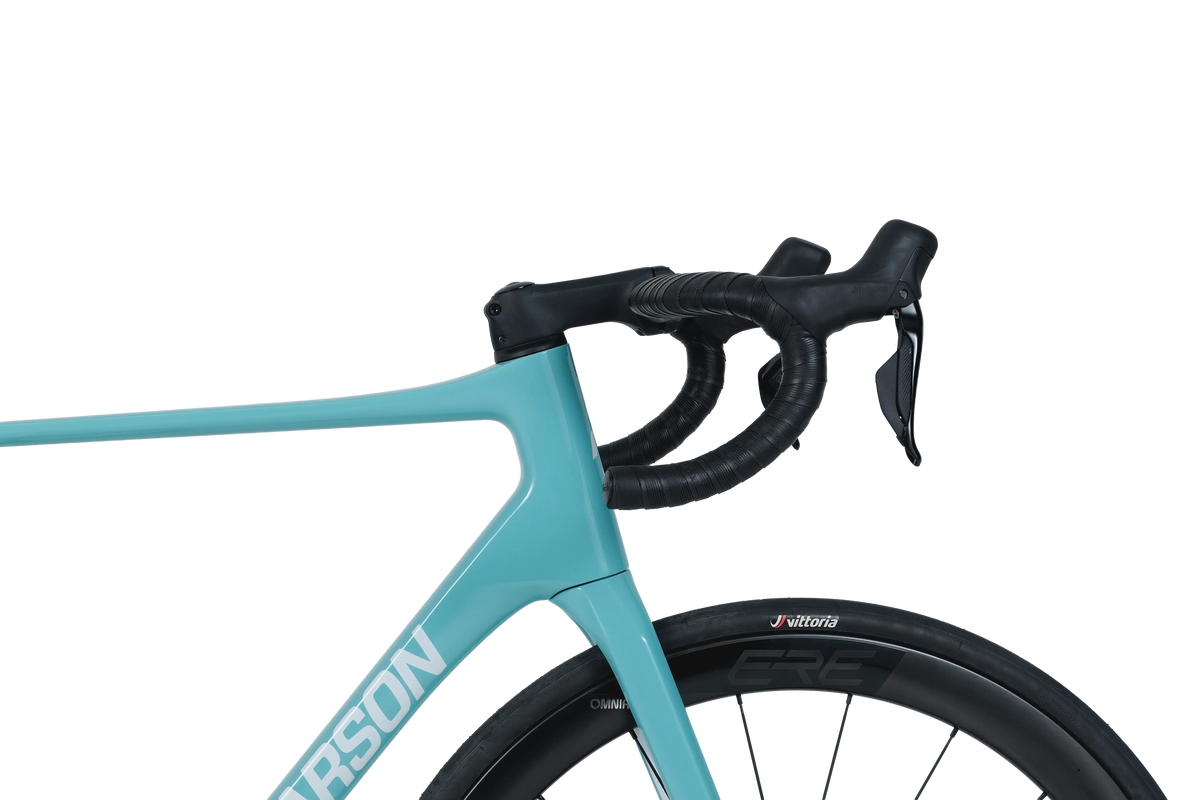

Handlebar
Pearson Carbon 2 piece Size 1: 38cm, Size 2-5: 40cm
Stem
Pearson Alloy Size 1:90mm, Size 2-3: 100mm, Size 4-5: 110mm
Bar tape
Fizik Vento Solocush Tacky Bar Tape 2.7mm Thickness - Black
Saddle
Fizik Aliante R5

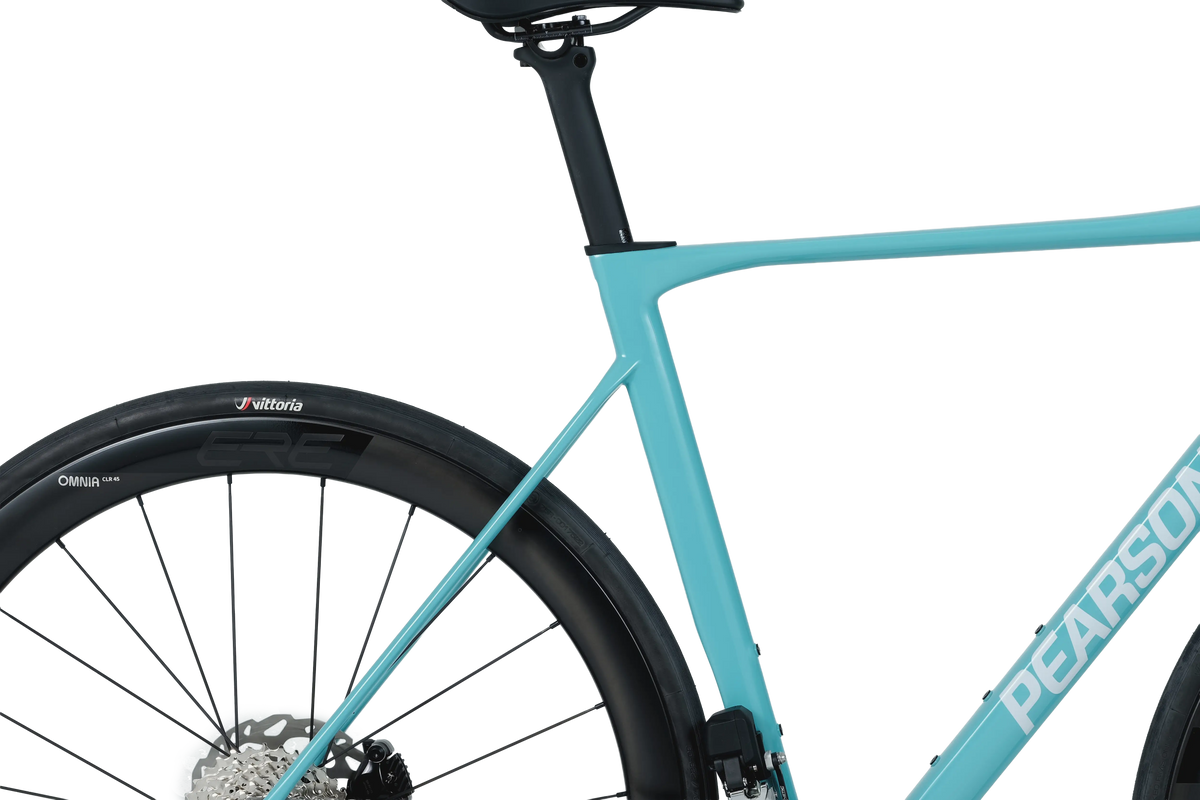

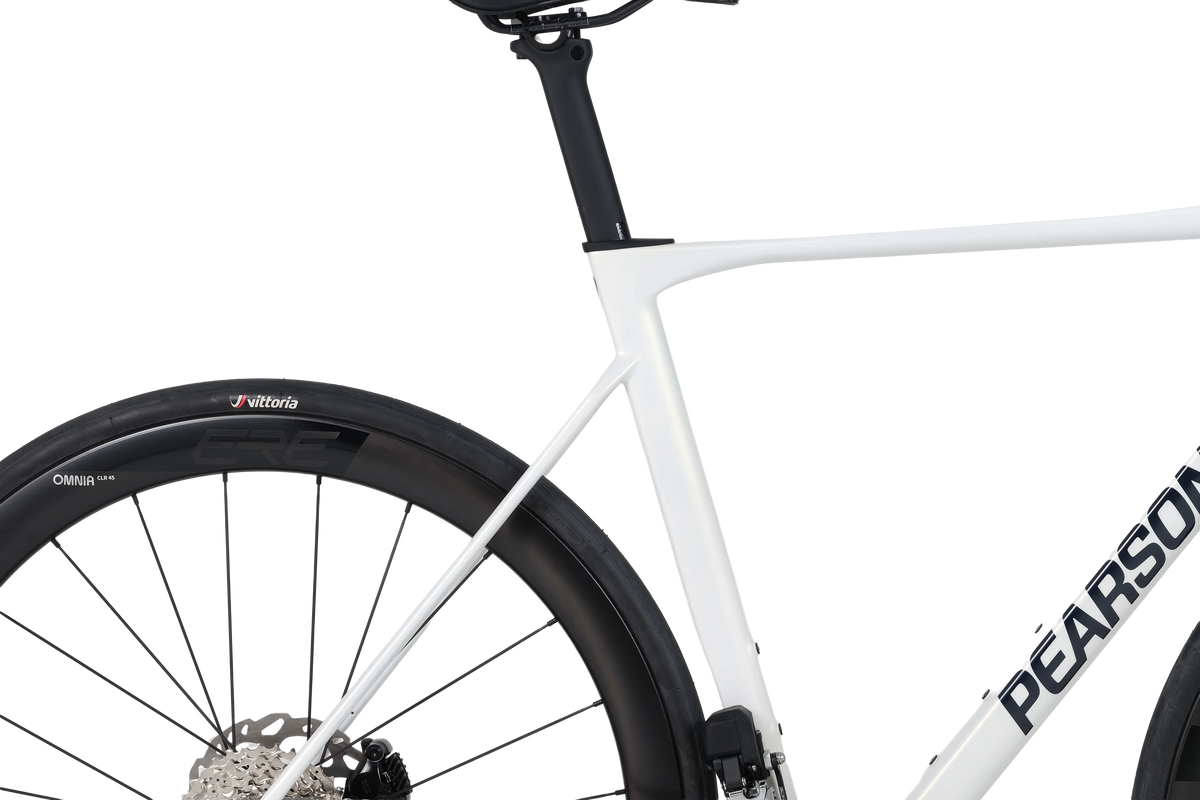

Seatpost Offset options
0mm, 12mm or 25mm
BB
Hope T47
Headset
Pearson with Ceramic Speed SLT bearings
Size
1 /49cm
2/52cm
3/54cm
4/56cm
5/58cm
A

Frame Reach

337

354

375

383

380

https://cdn.shopify.com/s/files/1/0278/9874/0835/files/FORGE_REACH_WHITE.gif?v=1708358420

B

Frame Stack

540

572

590

610

645

https://cdn.shopify.com/s/files/1/0278/9874/0835/files/FORGE_STACK_WHITE.gif?v=1708358420

C

Top Tube Length

486

513

544

558

565

https://cdn.shopify.com/s/files/1/0278/9874/0835/files/FORGE_TOP_TUBE_WHITE.gif?v=1708358420

D

Seat Tube Length

485

520

540

560

580

https://cdn.shopify.com/s/files/1/0278/9874/0835/files/FORGE_SEAT_TUBE_LENGTH_WHITE.gif?v=1708358420

E

Head Tube Length

130

161

173

194

230

https://cdn.shopify.com/s/files/1/0278/9874/0835/files/FORGE_HEAD_TUBE_LENGTH_WHITE.gif?v=1708358419

F

Seat Angle

74.5

74.5

74

74

74

https://cdn.shopify.com/s/files/1/0278/9874/0835/files/FORGE_SEAT_ANGLE_WHITE.gif?v=1708358420

G

Head Angle

70.2

71

72.5

72.5

72.5

https://cdn.shopify.com/s/files/1/0278/9874/0835/files/FORGE_HEAD_ANGLE_WHITE.gif?v=1708358420

H

BB Drop

75

75

72.5

72.5

72.5

https://cdn.shopify.com/s/files/1/0278/9874/0835/files/FORGE_BB_DROP_WHITE.gif?v=1708358419

I

Wheelbase

967

988

992

1006

1014

https://cdn.shopify.com/s/files/1/0278/9874/0835/files/FORGE_WHEELBASE_WHITE.gif?v=1708358420

J

Chainstay Length

408

408

408

408

408

https://cdn.shopify.com/s/files/1/0278/9874/0835/files/FORGE_CHAINSTAY_LENGTH_WHITE.gif?v=1708358420

K

Fork Offset

58

58

50

50

50

https://cdn.shopify.com/s/files/1/0278/9874/0835/files/FORGE_FORK_OFFSET_WHITE.gif?v=1708358420

L

Trail (32c tyre)

60

57

56

56

56

https://cdn.shopify.com/s/files/1/0278/9874/0835/files/FORGE_TRAIL.gif?v=1708358420

M

Rider Height (ft/in)

5'2-5'7'

5'6-5'10

5'9-6'0

5'11-6'3

6'2+

https://cdn.shopify.com/s/files/1/0278/9874/0835/files/BODY_DIAGRAM_height.gif?v=1708518312

N

Rider Height(cm)

158-171

167-178

175-183

180-190

188+

https://cdn.shopify.com/s/files/1/0278/9874/0835/files/BODY_DIAGRAM_height.gif?v=1708518312

O

Inside Leg (in)

29-31

30-33

32-35

34-37

36+

https://cdn.shopify.com/s/files/1/0278/9874/0835/files/BODY_DIAGRAM_leg.gif?v=1708518312

P

Inside Leg(cm)

73-79

77-83

81-87

86-92

91+

https://cdn.shopify.com/s/files/1/0278/9874/0835/files/BODY_DIAGRAM_leg.gif?v=1708518312

Size chart image
