Summon the Blood

Titanium gravel · 2019 to 2023

Summon the Blood
Summon the Blood
Summon the Blood

About

Summon the Blood took its name from Shakespeare's Henry V, and it was not the only one: Stiffen the Sinews came from the same speech. Pearson stopped at two.

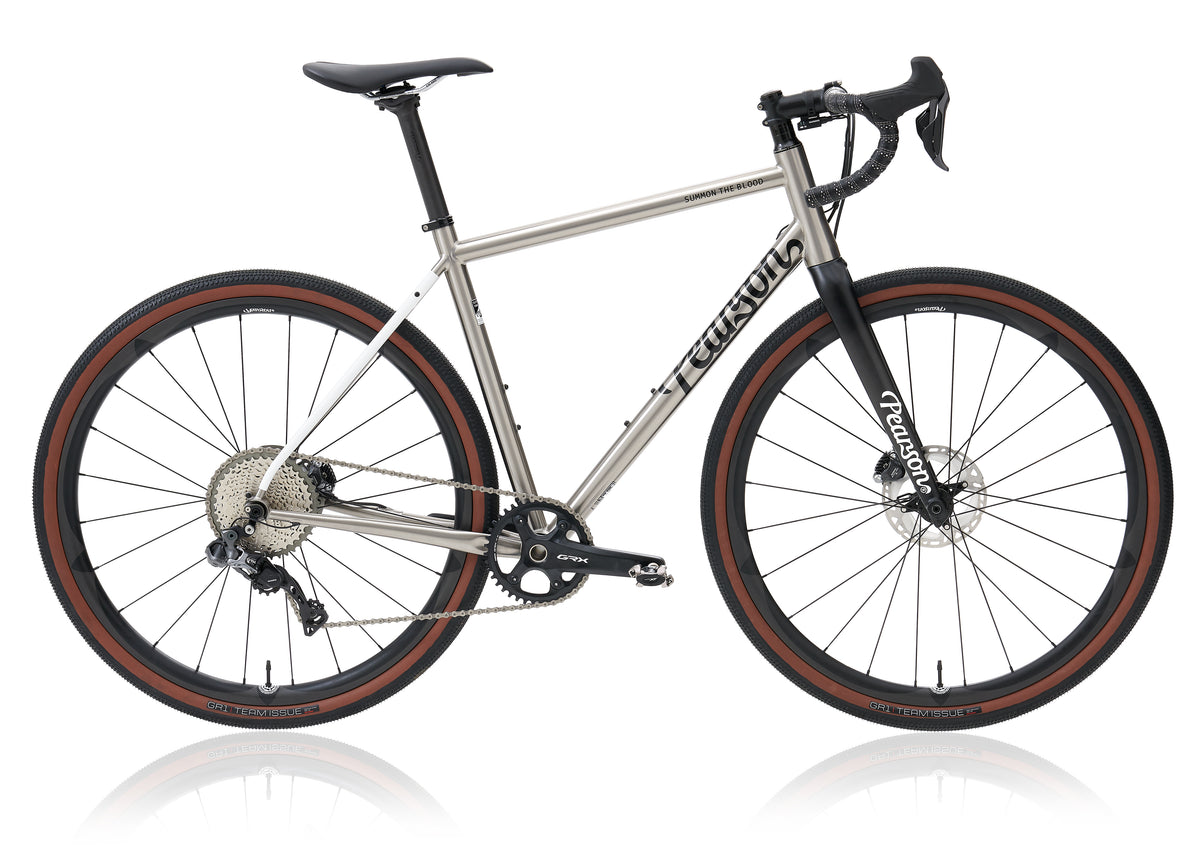

It was a titanium gravel bike, triple butted and welded to a carbon fork, with the down tube ovalised at the head tube and again at the bottom bracket. It ran to two generations.

We could have named our whole range from Shakespeare's Henry V. (We stopped at two.) Stiffening our sinews, crying God for Harry, England and St. George, old Henry is the quintessential motivational speaker. Summon the Blood has been similarly designed, to get you going. The carefully balanced geometry provides a sustainable riding position, for long days in the saddle and quicker spins. Direct disc mounts ensure the utmost braking power and 12mm through-axles minimise flex when the wheels are rolling, providing an efficient and robust ride.

The triple-butted titanium frame features the neatest of welds for a beautiful finish and blends seamlessly with a full-carbon fork. The downtube is ovalized at the headtube and at the bottom bracket delivering power efficiently, while the tapered carbon fork ensures accurate handling. Thinner seat-stays provide greater compliance from rough roads, and there is clearance for bigger tyres, a must on unmade surfaces. Subtle mounts offer the option of full guards and rack.

"Electronic gearing and titanium tubing, plus carbon or alloy disc wheels, all lead to a hugely rewarding ride. We build each bike to the customer's specification, taking great care to ensure you enjoy the ride for years to come."

GenerationsTwo generations
Frame3AL 2.5V triple-butted titanium
Finishes Blue, Orange
Full Specification
  • 3Al-2.5V butted titanium frame
  • Lightweight carbon fork
  • Shimano GRX815 Di2 gearing
  • Ability to run 40mm tyres (and 650B wheels)
  • Brakeset: Shimano GRX815 hydraulic flat mount

Frameset: 3AL 2.5V triple-butted titanium

Fork: Full unidirectional carbon monocoque

Shifters: Shimano GRX815 Di2 1x11-speed

Chainset: Shimano GRX815 11-speed 40-tooth

Cassette: Shimano GRX815 11-32

Chain: Shimano GRX815 11-speed

Rear derailleur: Shimano GRX815 Di2 11-speed

Rotors: Shimano GRX815

Handlebars: Pearson Round the Bend oversize alloy

Stem: Pearson To The Bar oversize alloy

Saddle: Bontrager Montrose

Seatpost: Pearson Carbon 31.6mm

Bartape: Black cork

Tyres: Bontrager GR1 700 x 40

Wheelset: DCR 25mm Deep Alloy, or Pearson Hoopdriver Bump & Grind Carbon

Groupsets offered
  • GRX815 1x
  • GRX600 2x
  • GRX815 2x
  • Ultegra Di2
Wheels offered
  • Bump and Grind
  • DCR 30/23 Gravel
  • Ebb and Flow
Geometry
SIZE/CMX-SmallSmallMediumLargeX-Large
A Frame reach360364376382387
B Frame stack558584604623647
C Effective top tube520535555567585
D Seat tube length475495520540565
E Head tube length130155175195220
F Seat angle74.073.773.573.573.0
G Head angle72.072.572.872.872.8
H BB drop70.070.070.070.070.0
I Wheelbase985992100710191032
J Chainstay length425425425425425

Still riding one?

The numbers you need when something wears out.

Thru axle, frontM12 x 1.5, 125mm
Thru axle, rearM12 x 1.75, 174mm

Spares and replacement parts for this model are looked after by Forge 1860.
