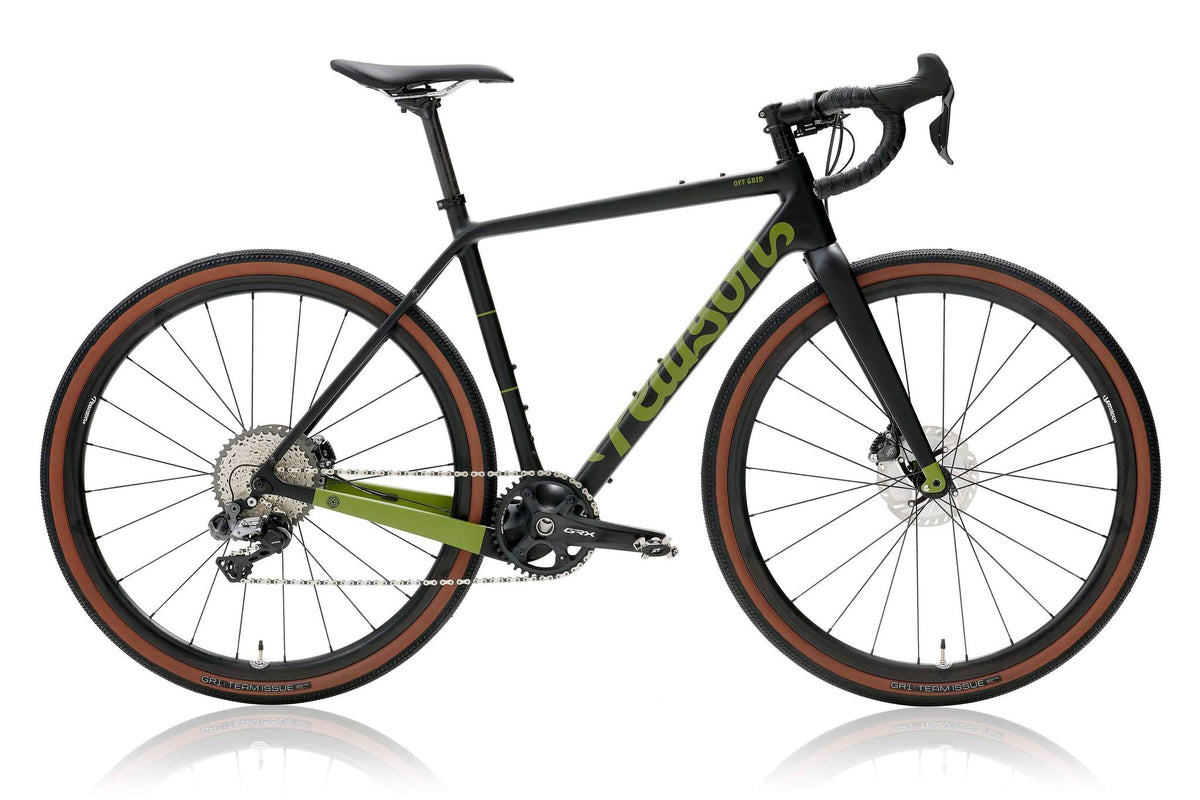

Carbon gravel · 2020 to 2022
| SIZE/CM | X-Small | Small | Medium | Large | X-Large | |
|---|---|---|---|---|---|---|
| A | Frame reach | 369 | 374 | 374 | 383 | 393 |
| B | Frame stack | 545 | 562 | 577 | 594 | 613 |
| C | Effective top tube | 520 | 535 | 550 | 565 | 580 |
| D | Seat tube length | 490 | 520 | 540 | 560 | 580 |
| E | Head tube length | 120 | 140 | 155 | 170 | 190 |
| F | Seat angle | 74.5 | 74.0 | 73.0 | 73.0 | 73.0 |
| G | Head angle | 70.5 | 71.0 | 71.5 | 72.0 | 72.0 |
| H | Wheelbase | 1015 | 1021 | 1025 | 1032 | 1041 |
| I | Chainstay length | 435 | 435 | 435 | 435 | 435 |
The numbers you need when something wears out.
Spares and replacement parts for this model are looked after by Forge 1860.
