The Archive · No. 17

Objects in Motion

Titanium road · 2015 to 2023

Objects in Motion

About

Objects in Motion was Pearson's third titanium bike, following Just Killing Time and I'll Get Me Coat, and the first to bring disc brakes to the material. It took its name from Newton's first law.

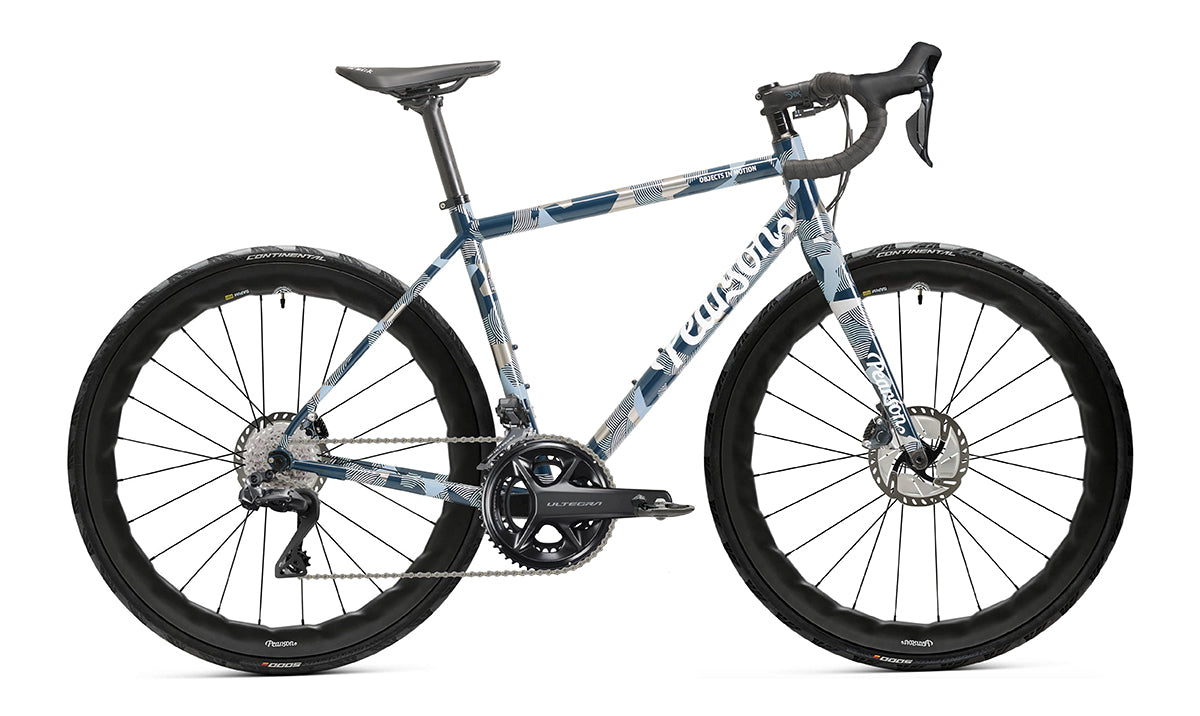

It was sold in two liveries: Grey, and the Blue Camo drawn by designer Richard Hall as a nod to the artwork of our Inside Out mental wellbeing rides.

A note for owners. The geometry published for this model on third party databases is wrong, and has been for years. The chart below is ours, taken from our own drawings.

Our premium road machine, this newly updated edition offers exceptional comfort and superb performance however long (or short) the ride. It's hard to overstate titanium's remarkable qualities. Roughly twice the strength of aluminium, titanium is half the weight of steel and handles with the ease of carbon.

We've moved away from the classic 'Ti' look in favour of more subtle graphics, designed to reveal something of the material beneath. The handiwork of designer Richard Hall, our 'urban camo' is a nod to the artwork associated with our mental wellbeing 'Inside Out' charity rides, providing occasional glimpses of the base titanium material.

All Pearson's titanium bikes are made using hand-drawn 3AL titanium for the main three tubes. The highest quality titanium available, it is triple butted to ensure strength and agility when riding.

GenerationsFour generations
Frame3Al/2.5V triple butted titanium
Finishes Grey, Blue Camo
Full Specification
  • 3Al-2.5V butted titanium frame
  • Responsive, comfortable Pearson House Design geometry
  • Lightweight full carbon fork
  • Direct disc mounts for exceptional braking
  • 12mm thru axles to minimise flex

Frameset: 3AL 2.5V triple-butted titanium. Fork: full unidirectional carbon monocoque. Shifters: Ultegra R8170 12 speed or Ultegra R8020 11 speed. Chainset: Ultegra Di2 R8170 12 speed or Shimano mechanical R8000 11 speed. Cassette: Ultegra CS-R8100 12 speed or CS-R8000 11 speed.

Brakes: Ultegra R8170 hydraulic flat mount or Ultegra mechanical R8000. Stem: Pro PLT, sized to the rider. Saddle: Bontrager Verse. Seatpost: Pearson carbon. Tyres: Continental GP5000 700x28c. Wheelset: DCR 30mm deep alloy, Pearson Hoopdriver Tooth and Nail carbon or Cut and Thrust carbon.

Groupsets offered
  • 105 R7020
  • Ultegra Di2 12 speed
  • Ultegra Di2 R8070
  • Ultegra mechanical
Wheels offered
  • Cut and Thrust
  • Ebb and Flow
  • Tooth and Nail
  • Bump and Grind
Geometry
SIZE/CMX-SmallSmallMediumLargeX-Large
A Frame reach367371383390395
B Frame stack533558578598622
C Effective top tube520535555567585
D Seat tube length470495520540565
E Head tube length130145175195220
F Seat angle74.073.573.573.573.0
G Head angle73.073.073.073.073.0
H BB drop70.070.070.070.070.0
I Wheelbase97197599510071019
J Chainstay length415415415415415
Rider height (ft/in)5'3-5'75'8-5'105'10-6'06'0-6'26'2 up
Rider height (cm)160-171172-178178-183183-188188 up

Still riding one?

The numbers you need when something wears out.

Thru axle, frontM12 x 1.5, 119mm
Thru axle, rearM12 x 1.75, 174mm
Torque and notesDirect disc mounts, flat mount callipers. 12mm thru axles front and rear.

Spares and replacement parts for this model are looked after by Forge 1860.
